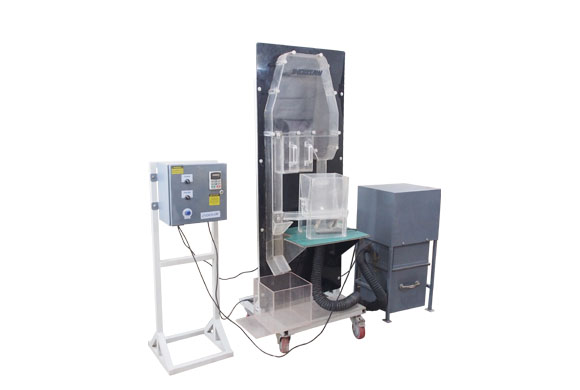

Wall Mount Air Seed Separator

Item Code : 8235

asjojk-s



  • Reduced number of adjustments compared to other Gravity Separators available in the market.
  • Air flow control is through digital electronic drive thus precise air control can be set according to nature of seeds and fine cleaning & grading is possible.
  • Seed contamination chances are negligible.
  • Seed damage chances are negligible due to smooth transparent acrylic sheets used.
  • Few moving parts ensures less maintenance
  • Total visibility of all product movement due to transparent acrylic sheets.
  • More seed yield possible.
  • Electromagnetic vibratory feeder

Capacity : Up to 250 kg/hour
Structure : Heavy structure makes the machine sturdy and more stable. Deck mounted on foundation frame for stability of machine.
Feeding System : Provided with feed hopper, regulator for in flow of grain across the entire width of deck.
Separation :Fitted with five stage cleaning facility.
Motor :3 HP motor of reputed make to run on 415v, 50Hz, 3phase AC supply.
Operation :Vibratory system with aspiration and size grading system to separate the finer impurities also.
Working : Continuous type.
Vibratory Deck : Vibratory deck with well balanced built in fan for air volume adjustment for accurate final separation of grains by counter current.
Deck Inclination :Facility for independent alteration for inclination of desk (lateral & longitudinal).
Accessories : One set of removable screens
