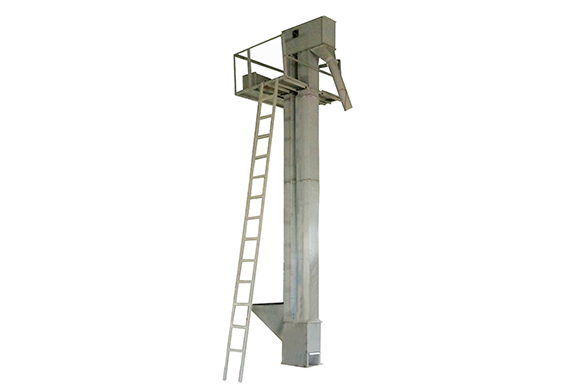

Vertical Bucket Elevator

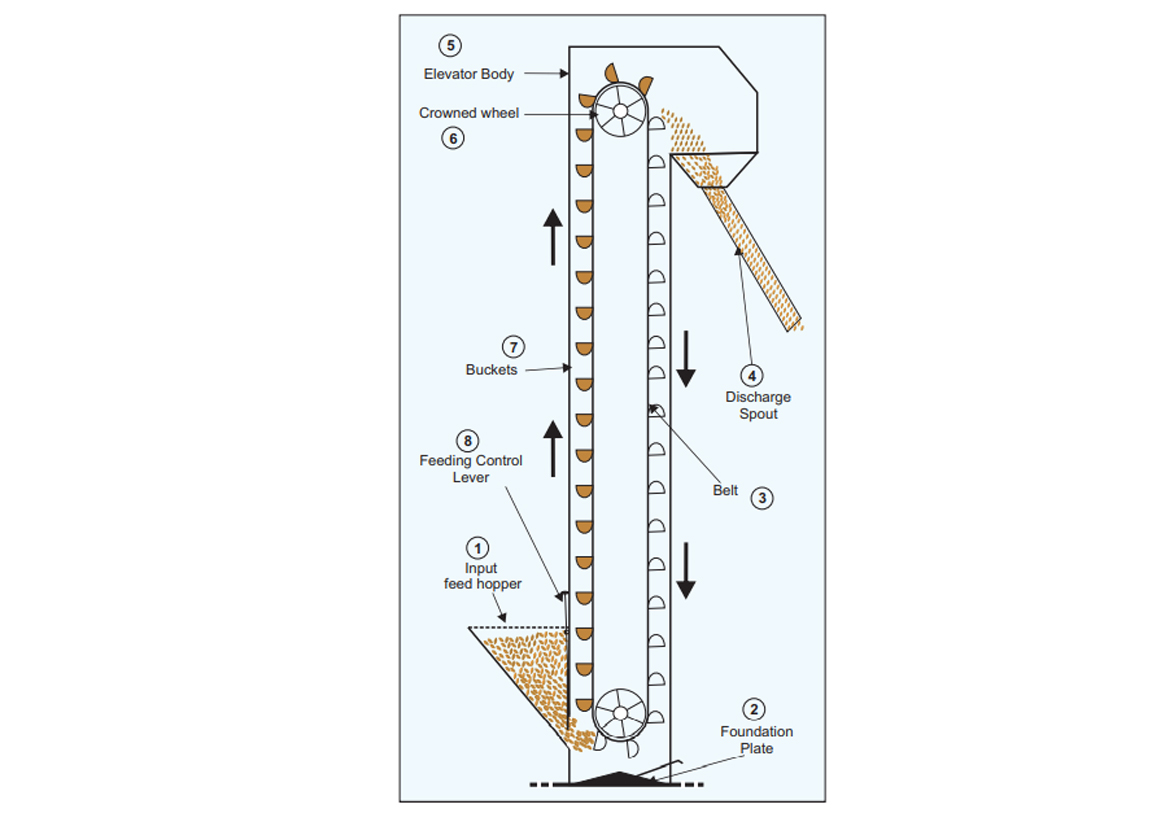

COMPACparrrT



  • Economical Model and self cleaning type.
  • Geared motor for better torque.
  • Crowned wheel for improved traction.
  • Branded geared motor used for long life.
  • Nylon/HDPE buckets used.

Type of Elevator  : Centrifugal Discharge Belt type
Material to be handled : Free flowing Granular Material
Discharge chute : Provided with soft material coating.
Material of Belt : Rubberised.
Material of Bucket : Nylon/HDPE
Drive : Geared Motor



Cat. No. Capacity (on wheat basis) Motor
6893 0.5 Ton/Hr 0.5 HP
6894 1 Ton/Hr 0.5 HP
56894 2 Ton/Hr 1 HP
56895 3 Ton/Hr 1 HP
6897 4 Ton/Hr 1 HP
6898 5 Ton/Hr 1 HP
56897-S 10 Ton/Hr 2 HP
56898-S 15 Ton/Hr 3 HP

Capacity 2 Ton/hr Wheat Basis, 1ton onion seed basis
Discharge Type Centrifugal Discharge
Sheet Metal parts and casting MS sheet Head Casting Sheet=2 mm thick & CNC punched (M.S)
Thickness Boot Casting Sheet=2.5 mm thick & CNC punched (M.S)
Bucket Materials Leg Casting Sheet=1.6 mm thick & CNC punched (M.S}
Belt HDPE/Nylon
Head and boot pulley Rubberized canvass mate1rial belt speed not more than 1.0m/sec.
Discharge height Crowned type
Speed Reduction As per Machine Height
Eevator Gear Motor By Gear Box of Suitable Gear reduction ratio Gear motor power build/Premium make not more than 2.0 HP 3 Phase, 440 V
Construction Willl be Painted steel.
