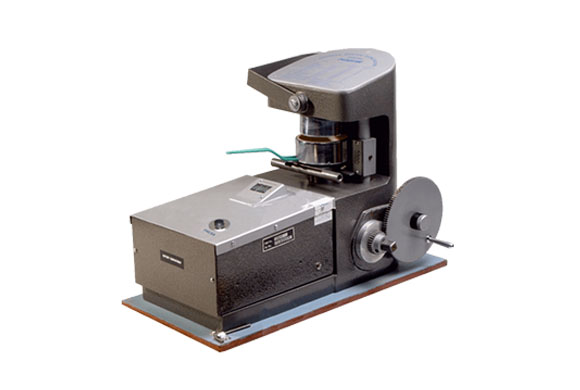

Universal Digital Moisture Meter

Item Code: 6003

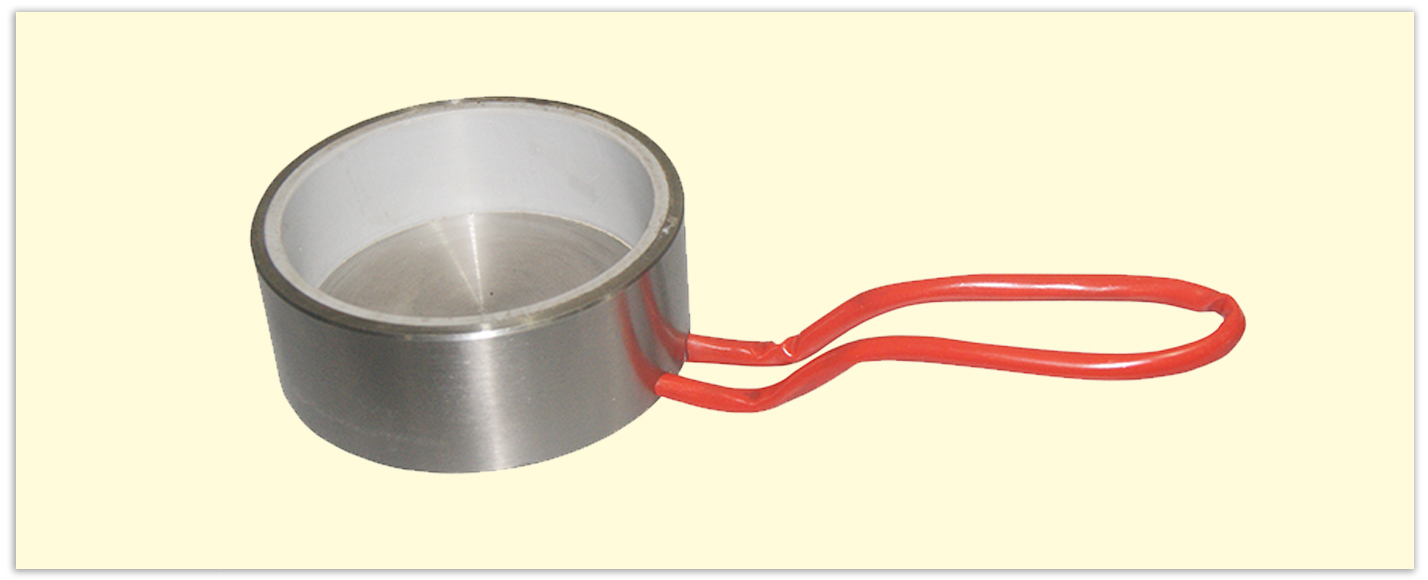

text-cup



  • Virgin alluminium body material LM.6 for better strength.
  • Test cup visible during operation. So no chance of cup breakage.
  • Test Cup Made of Stainless Steel for longer life.
  • Ratchet Handle Made of Stainless Steel for longer life.
  • Easy to operate using single switch.
Commodity : Food grains, Pulses, Oil Seeds, Vegetables Seeds etc.
Consistency : ± 0.2 %
Principle of measurement : Resistance
Temperature Compensation : Automatic with PT-100 temperature sensor.
Range selection : Automatic
Low Battery Indication : Automatic
Error conditions : Displayed.
Power : 9V DC Adaptor for AC mains or 6 dry cells.
Size (LxBxH in cm) : 42 x 2.5 x 30.5 cm (approx).
Weight : 21-22 Kg (approx) including ratchet handle, cells & adapter.
Universal-Auto-Calibration-Digital-Moisture-Meter-2008-inner

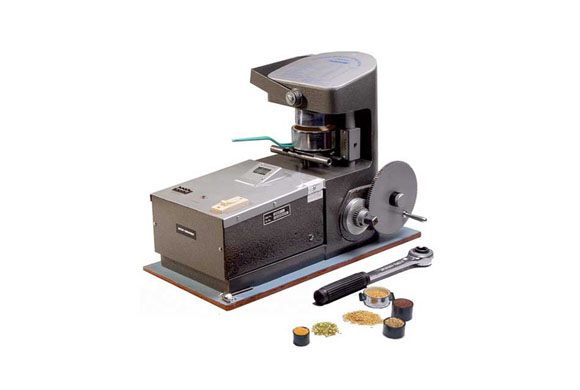

Universal Auto Calibration Digital Moisture Meter

Item Code: 2008

own-test



  • Test Cup Made of Stainless Steel for longer life.
  • Ratchet Handle Made of Stainless Steel for longer life.
  • Data logging with Data Storage capacity of 200 readings for recalling date at later stage.
  • Three Hot keys for any three crops for ease of operation.
  • Separate code for each commodity for ease of selection.
Commodity calibration : Food Grains, Pulses, Oil Seeds, & Vegetables Seeds etc.
Range : 3.5 to 40%
Consistency : ± 0.2 %
Principle of measurement : Resistance
Temperature Compensation : Automatic with PT-100 temperature sensor.
Error Conditions : Under Range, Over Range etc.
Display : 2 x16 character alphanumeric LCD display.
Low Battery Indication : Displayed on LCD display, No display of Moisture percentage in case of low battery.
RS 232 Port : It has the provision to attach printer to print Moisture %age, Temperature, Commodity name, date and Time through printer. Recorded data can be transferred to PC through RS 232 port.
Hot keys : Hot Keys for three crops which are programmable
Keypad : Membrane type keypad (9 keys).
Averaging : Customer can have averaging of number of readings of moisture Percentage through a key.
Recall Facility : Last reading Recall facility.
Data Logging : It has facility to record data, which includes Moisture percentage, Temp. Commodity Name, Commodity Code along with Date & Time.
Data storage capacity : It has memory of 200 readings.
Power : 9 V DC Adaptor, operated through 230V, 50 Hz, AC main or 6 dry cells.
Size (LxBxH in cm) : 30x18x19 cm (Approx.)
Weight : 9.5 Kg (Approx.)
universal-data-logging-moisture-meter-2023-inner

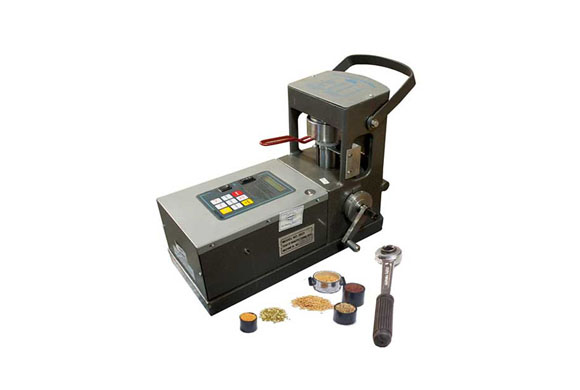

Universal Data Logging Moisture Meter

Item Code: 2023

compact-3
jheiidkkd-1



  • Alloy steel body for better strength
  • Three Hot keys for any three crops for ease of operation.
  • Test Cup made of Stainless Steel for better strength.
  • Test cup visible while Giving Pressure therefore no test cup breakage.
  • Ratchet Handle Made of Stainless Steel for longer life.
  • Data logging facility for recalling data at later stage.
Commodity calibration : Food Grains, Pulses, Oil Seeds, & Vegetables Seeds etc.
Range : 3.5 to 40%
Consistency : ± 0.2 %
Principle of measurement : Resistance
Temperature Compensation : Automatic with PT-100 temperature sensor.
Error Conditions : Under Range, Over Range etc.
Display : 2 x16 character alphanumeric LCD display.
Low Battery Indication : Displayed on LCD display, No display of Moisture percentage in case of low battery.
RS 232 Port : It has the facility to connect printer to print Moisture %age, Temperature, Commodity
name, date and Time through printer. Recorded data can be transferred to PC through RS
232 port.
Hot keys : Hot Keys for three crops which are programmable
Keypad : Membrane type keypad.
Averaging : Customer can have averaging of number of readings of moisture Percentage through a key.
Recall Facility : Last reading Recall facility.
Data Logging : It has facility to record data, which includes Moisture percentage, Temp. Commodity Name, Commodity Code along with Date & Time.
Data storage capacity : It has memory of 200 readings.
Power : 9V DC Adaptor for AC mains or 6 dry cells.
Size (LxBxH in cm) : 42 x 23.5 x 30 cm (approx.).
Weight : 23 Kg (Approx.) including ratchet handle, adapter.
universal-data-logging-moisture-meter-2023-inner

Universal Data Logging Moisture Meter

Item Code: 2023-BH

COMPACT-UNI-1
jheiidkkd-1



  • Alloy steel body for better strength
  • Three Hot keys for any three crops for ease of operation.
  • Test Cup made of Stainless Steel for better strength.
  • Test cup visible while Giving Pressure therefore no test cup breakage.
  • Ratchet Handle Made of Stainless Steel for longer life.
  • Data logging facility for recalling data at later stage.
  • Bluetooth connectivity to transfer the reading on smart phone and PC.
Commodity calibration : Food Grains, Pulses, Oil Seeds, & Vegetables Seeds etc.
Range : 3.5 to 40%
Consistency : ± 0.2 %
Principle of measurement : Resistance
Temperature Compensation : Automatic with PT-100 temperature sensor.
Error Conditions : Under Range, Over Range etc.
Display : 2 x16 character alphanumeric LCD display.
Low Battery Indication : Displayed on LCD display, No display of Moisture percentage in case of low battery.
RS 232 Port : It has the facility to connect printer to print Moisture %age, Temperature, Commodity
name, date and Time through printer. Recorded data can be transferred to PC through RS
232 port.
Hot keys : Hot Keys for three crops which are programmable
Keypad : Membrane type keypad.
Averaging : Customer can have averaging of number of readings of moisture Percentage through a key.
Recall Facility : Last reading Recall facility.
Data Logging : It has facility to record data, which includes Moisture percentage, Temp. Commodity Name, Commodity Code along with Date & Time.
Data storage capacity : It has memory of 200 readings.
Power : 9V DC Adaptor for AC mains or 6 dry cells.
Size (LxBxH in cm) : 42 x 23.5 x 30 cm (approx.).
Weight : 23 Kg (Approx.) including ratchet handle, adapter.
