Spectrophotometry Kit

Item Code: SN1055

Principle and Working:

This spectrophotometer is used to measure the transmission spectra and spectrum of lines, continuous spectra of white light. The spectral range of the spectrophotometer is 350-900nm with transmission accuracy 0.1%. It is delivered with software 2m-optical fibre etc.




  • Intuitive software.
  • Spectra of any light source can be analysed.
  • Supplied in a briefcase.
  • Different spectrum: ray spectrum, continuous spectrum, fluorescent spectrum can be analysed.
  • No need of external power supply.
  • USB operated.

  • To observe the spectrum of any light source : Ray Spectrum, Continuous Spectrum (Sun, Glowing Lamp, Candle), Fluorescent Spectrum.
  • To study the kinetics of a solution during a given time.
  • To study the colour spectra of lights and filters.
  • To study Beer-Lambert & Kinetics: concentration of chemical solutions
  • Spectral range : 350 - 900 nm
  • Accuracy (in measuring : 0,5 nm the wavelength)
  • Wavelength resolution : 1,5 nm
  • Transmission : From 0 to 100 %, resolution 0,1%
  • Absorption : From 0 to 3 Å
  • Lamp : Quartz halogen
  • Optical setting : Czerny Turner
  • Sensor : Linear silicium CCD sensor

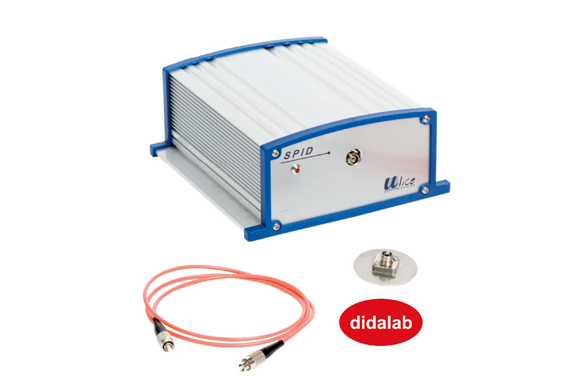

  • 1 Spectrometer
  • 1 Software CD
  • 1 USB cable
  • 1 Fiber adopter
  • 1 2-meters optical fiber – 50 μm
  • 1 2-meters optical fiber – 100 μm (Optional)
  • 1 Absorption module
  • 1 Set of 100 experimental cuvettes
  • 1 Linear sensitivity and colorimetry (Optional)
  • 1 Luxmeter (Optional)
  • 1 Optical fork (Optional)
  • 1 Collimator (Optional)
