Specific Heat Of Solids

Item Code: SK051

Principle and Working:

The specific heat capacity of copper, glass and lead are determined by heating the material in a steam chamber and then transferring the heated material into a weighed amount of water in a dewar vessel and measuring the temperature.
... In the present setup, the system consists of mixing a given mass m1 of a hot metal specimen specific heat c1 at temperature T1 with a known mass m2 of water of specific heat c2 at a lower temperature T2 contained in a calorimeter of mass m3 of specific heat c3 initially at temperature T2 . Once again we assume the system to be thermally insulated from the surroundings, and the heat capacity of the thermometer, which records the temperature, can be neglected. Let the final temperature of the mixture be Tf . Energy conservation gives:
Qlost (Metal) = Qgained (Water) + Qgained (Calorimeter)
m1 c1 (T1 - Tf ) =m2 c2 (Tf -T2 ) +m 3 c 3 (T f -T 2 )
which, yields the unknown specific heat c 1 of the metal specimen as
c1 = (m2 c2 +m3 c3 )( Tf -T2 )/m1 (T1 -Tf )




Features

  • High insulation dewar flask with heat capacity of almost zero.
  • Digital Weighing scales with maximum capacity of 700gm.
  • PT-100 based digital thermometer with accuracy of 0.1 degree Celsius.
  • Different samples Like Copper and Lead supplied with experiment.

  • To determine the specific heat capacity of solids (Copper and lead).

Digital timer & photogate:

  • Digital thermometer : Pt-100, Range -50 to +199.9 C, Resolution 0.1 C, Accuracy ± 0.2 C ± 1 digit, Battery 9V
  • Dewar Flask : 350ml portable, 100% rust free, vacuum insulated, designed for hot & cold, copper coating provides heat retention
  • Samples : Copper & Lead, 100gm each
  • Steam chamber : Inner chamber 100x30mm (LxΦ), Outer chamber 80x75mm (LxΦ), Nozzle 30 x 8mm (LxΦ), Handle L=90mm, PVC.

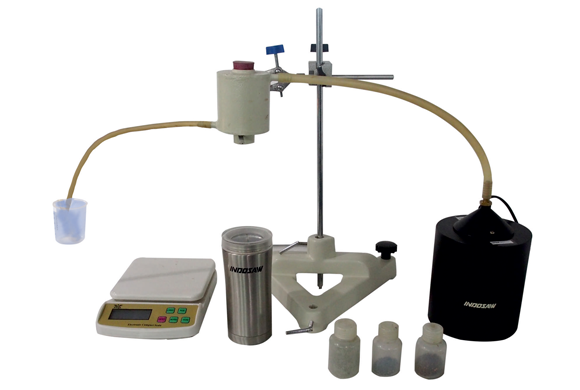

    • 1 ‘’A’ shaped base
    • 1 Three finger clamp
    • 1 Dewar Flask
    • 1 Bosshead
    • 1 Rod (0-50cm)
    • 1 Steam Chamber
    • 1 Beaker
    • 1 Copper sample (100gm)
    • 1 Lead sample (100gm)
    • 1 Rubber cork
    • 1 Digital Thermometer
    • 1 Digital weighing scale
    • 1 Silicone Tubing,1.5m
    • 1 Steam generator
    • Heat
    • Specific heat capacity
    • Conservation of energy
    • Calorification
    • Water equivalent
