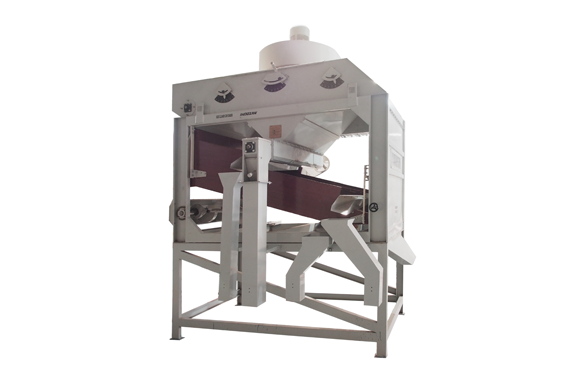

Seed/Grain Pre Cleaner

COMPAdfsfagf3CT-UNI-1



  • Three screen layers for better cleaning.
  • Use of CNC machine for fabrication of all sheet metal components.
  • Sieve boad made of compressed plywood that absorb very well.
  • Effective screen cleaning by bouncing rubber balls system.
  • Less maintenance due to structurally stable machine.
  • Seeds/grains are separated in five different categories i.e. Light Impurities, Heavy Impurities, Dust, Undersize Impurities & graded good seeds/grains.
  • Auger takes out light impurities smoothly without blower suction loss.
  • Soft wooden sieve deck and screen frame handle seed gently and smoothly.

Model IPC-2 IPC-3 IPC-4 IPC-6.25
Capacity (wheat basis) 1 Ton/hr 2 Tons/hr 4-5 Tons/hr 8-10 Tons/hr
Top Screen (L x B) 760 x 595mm, 1 No. 1000 x 600mm,1 No. 1000 x 800mm,1 No. 1000 x 1250mm,1 No.
Middle Screen (L x B) 700 x 595mm, 2 No. 1000 x 600mm,2 No. 1000 x 800mm,2 No. 1000 x 1250mm,2 No.
Bottom Screen (L x B) 700 x 595mm, 2 No. 1000 x 600mm,2 No. 1000 x 800mm,2 No. 1000 x 1250mm,2 No.
Blower Motor 2HP 5HP 5HP 7.5HP
Sieve Boat Motor 1HP 1.5HP 1.5HP 2HP
Light Impurities Collection system By auger By auger By auger By auger
Sieve Boat Compressed Plywood Compressed Plywood Compressed Plywood Compressed Plywood
Screen travelling TH 3500mm 5000mm 5000mm 5000mm

IPC-2 = Indosaw Pre Cleaner 2m2 Screen Area, IPC-3 = Indosaw Pre Cleaner 3m2 Screen Area, IPC-4 = Indosaw Pre Cleaner 4m2 Screen Area, IPC-6.25 = Indosaw Pre Cleaner 6.25m2 Screen Area
