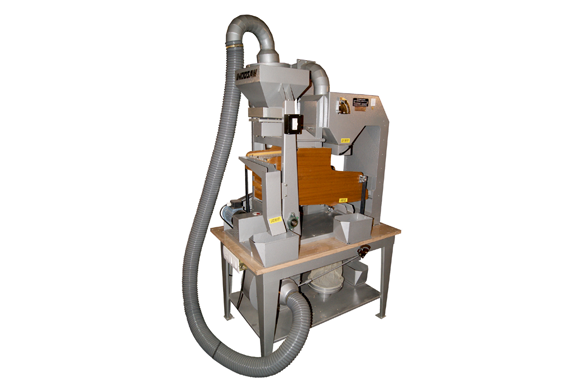

Seed/Grain Grader (Air Screen Cleaner Type)

Item Code: 6837

CNC machining for fabrication of all sheet metal components.
Rubber ball screen cleaning is provided for most effective cleaning.
It gives five separation i.e. Light Impurities, Large Impurities, Dust, undersize Impurities & Final Graded Material.
It is provided with a primary cyclone collector and secondary bag filter for dustless operation with primary cyclone collector and secondary bag filter.
AC drive to accurately increase or decrease screen agitation.
Manual feeding possible.

Cleaning capacity	: 150 kg/hr (based on wheat)
Dimensions	: 950 x 1100 x 1950 mm (L x W x H) (approx.)
Main Screen size	: 250 x 500 mm (approx.)
Prescalping Screen size	: 250 x 250 mm (approx.)
Motor for blower	: 1 HP, 2810 rpm, single phase.
Operating Voltage	: 220V, 50Hz single phase AC
Motor for sieve boat	: 90W, three Phase (Built in AC drive)
Fabrication	: CNC machining for fabrication of all metal component .
Drive	: AC drive to increase or decrease screen agitation.
Screens	: Three nos. of rapidly changeable screens, two for oversized material whereas one for undersized material.
Screen cleaning	: Rubber balls screen cleaning system.
Aspiration	: Pre-aspiration and final aspiration with a primary cyclone collector and secondary bag filter for dustless operation.
Output	: 5 types of separations : large impurity, under size impurity, light impurity, dust and final graded material.
