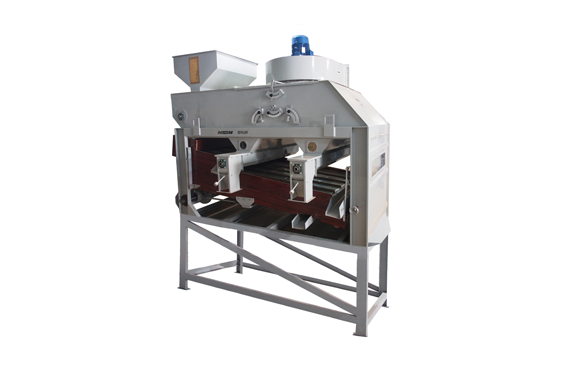

Seed/Grain Fine Cleaner

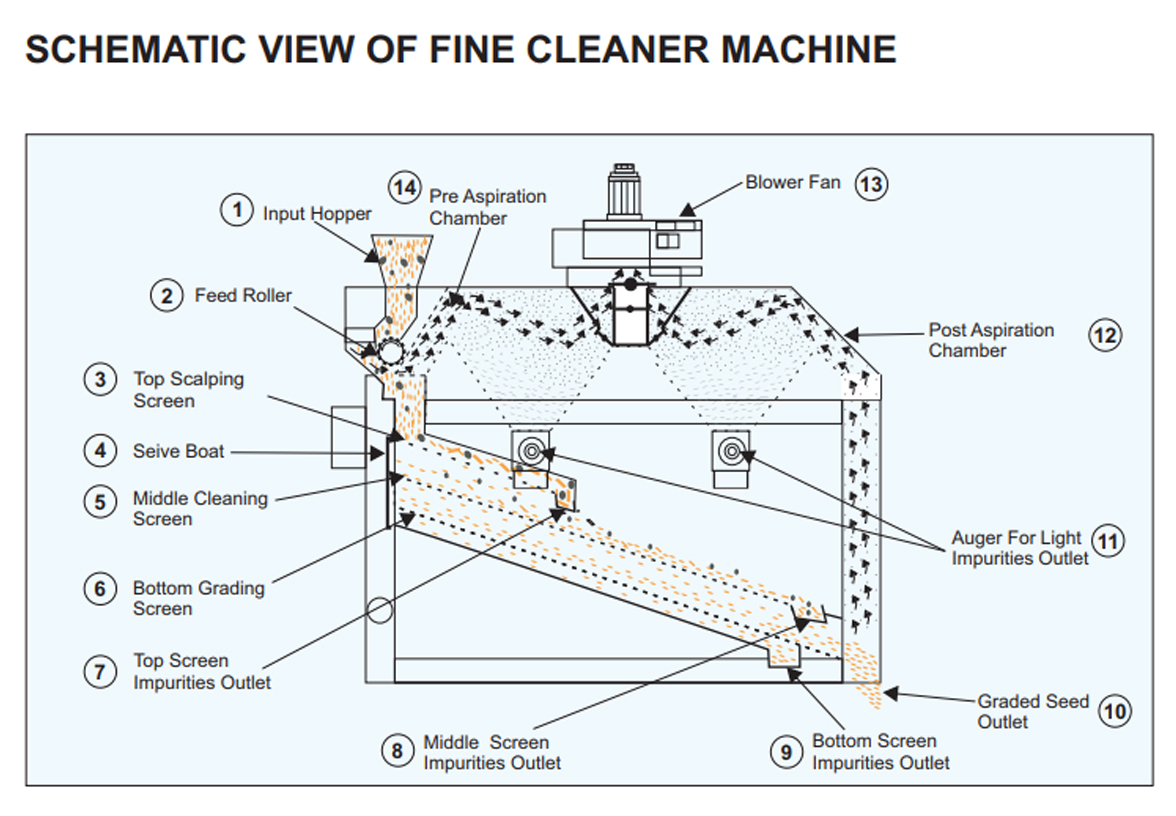

COMPhhhhsdaACT-UNI-1



  • Three screen layers for better cleaning.
  • Use of CNC machine for fabrication of all sheet metal components.
  • Sieve boad made of compressed plywood that absorb very well.
  • Effective screen cleaning by bouncing rubber balls system.
  • Less maintenance due to structurally stable machine.
  • Seeds/grains are separated in five different categories i.e. Light Impurities, Heavy Impurities, Dust, Undersize Impurities & graded good seeds/grains.
  • Auger takes out light impurities smoothly without blower suction loss.
  • Soft wooden sieve deck and screen frame handle seed gently and smoothly.
  • Pre and Fine aspiration collection separate for better cleaning control.

Model IFC-2.9 IFC-4.4 IFC-5.6 IFC-8.3
Capacity (wheat basis) 1 Ton/hr 2 Tons/hr 3 Tons/hr 4-5 Tons/hr
Top Screen (L x B) 700 x 515mm, 1 No. 800 x 800,1 No. 800 x 1000, 1 No. 800 x 1500, 1 No.
Middle Screen (L x B) 700 x 515, 3 No. 800 x 800,3 No. 800 x 1000, 3 No. 800 x 1500, 3 No.
Bottom Screen (L x B) 700 x 515, 3 No. 800 x 800,3 No. 800 x 1000, 3 No. 800 x 1500, 3 No.
Blower Motor 3HP 5HP 7.5HP 7.5HP
Sieve Boat Motor 1HP 1.5HP 2HP 2HP
Light Impurities Collection system By augers By augers By augers By augers
Sieve Boat Compressed Plywood Compressed Plywood Compressed Plywood Compressed Plywood
Screen travelling TH 4900mm 5600mm 5600mm 5600mm

IFC-2.9 = Indosaw Fine Cleaner 2.9m2 Screen Area, IFC-4.4 = Indosaw Fine Cleaner 4.4m2 Screen Area, IFC-5.6 = Indosaw Fine Cleaner 5.6m2 Screen Area, IFC-8.3 = Indosaw Fine Cleaner 8.3m2 Screen Area,
