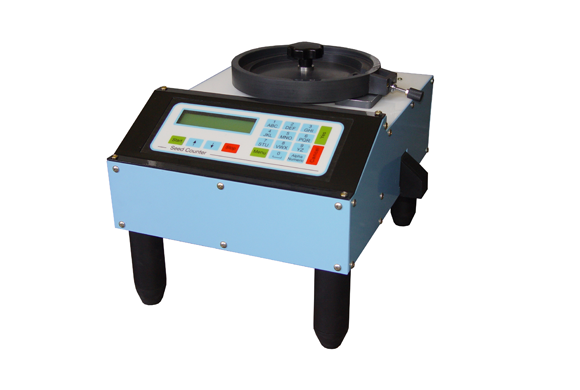

Seed Counter Computerised

Item Code: 6709

YOY-1



  • Programmable stop to compensate for any In-flight Error due to the motion of the seeds for better result.
  • Memory for seed parameters such as seed name, seed size, lot no, lot seed count and power level up to 99 commodities for tracking.
  • Soft start for low seed counts for better result.
  • Bulk counting done in high vibration level for better speed.
  • Seed name, seed size and vibration strength displayed on LCD while counting for information.

Capacity : Counts maximum up to 999999 seeds in a lot.
Range : 0.3mm to 15mm.
Memory : To store settings of 99 commodity parameters which include seed size, seed name, lot no fast and slow vibration strength and counts.
Controller : Micro Controller based.

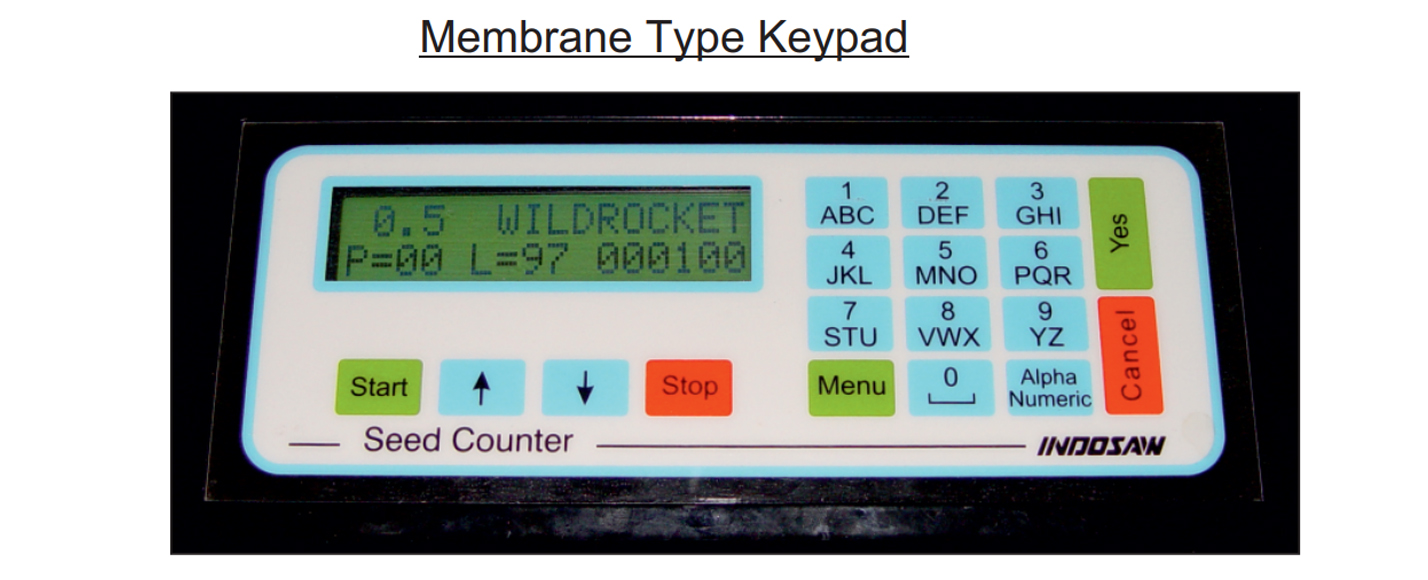

Keypad : Membrane type.
Display : 16×2 line LCD display with backlit. Seed name, size, count and vibration strength displayed on LCD while counting.
Feeding : Electromagnetic vibratory feed.
Removable pan : Knob provided for removing pan easily. Separate pan for seed size below 1mm.
Speed control : Soft Touch speed control no knob required.
In flight error : Programmable stop to compensate in flight error.
Pan : Metallic pan of volume-200cc.
Interface : RS 232 and parallel port interface for attaching computer and printer.
Additional pan : Additional pan for seed size 0.3 to 0.4mm (optional).
