Description :

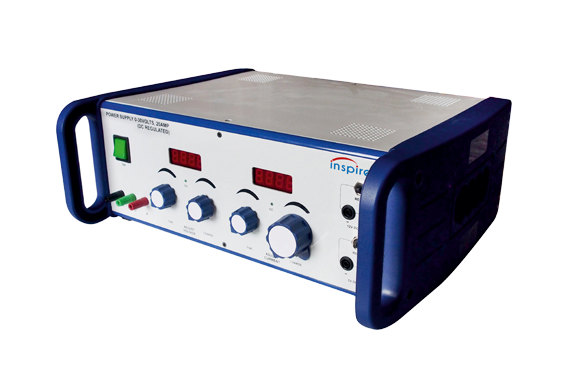

Adjustable DC Voltage and Current Regulated Power Supply is a high precision DC Power Supply with an output of continuously adjustable voltage and with the provision for limiting the current within desired range. When the maximum current regulation is set, output voltage is continuously variable between 0-30V and can be set at a desired value.
| Mains operations | Universal & customized Option for both 115V/230V, 60/50Hz AC |
| Output Voltage1 Output Voltage2 Output Voltage3 Output Current1 Output Current2 Output Current3 |
: 0-30 V variable : 12 V (fixed) : 5 V (fixed ) : 0 - 20Amp / 0 -10 Amp / 0-5 Amp. : 500mA (fixed) : 500mA (fixed) |
| Safety Features |
► Triple protection: • Split bobbin transformer design with additional inbuilt thermal protection. • Slow-blow fuse protection. • Current limiter protection. ► Safety sockets for use with shrouded safety 4mm plugs but conventional leads with standard 4mm plugs can also be used. ► Internal fan for cool-running. ► All Inspire power supplies are tested for CE safety requirements such as insulation resistance test, ground bond test, dielectric strength test etc. |
| Application | Useful for experiments where a constant large current is necessary such as Biot Savart’s Law, Helmohltz’s coil, Hall Effect, Zeeman Effect etc. |
