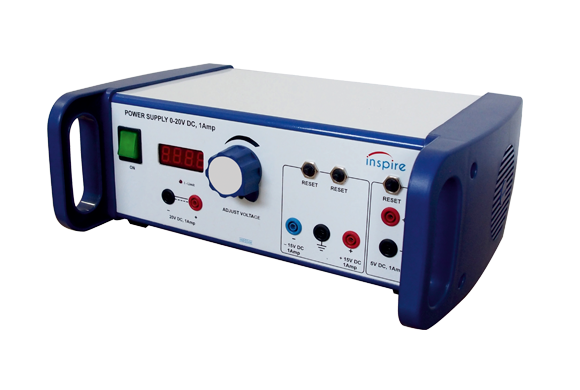

Power Supply 0-20V, DC 1A

Item Code: SE1075A




  • Teacher lockable knob to limit the maximum voltage.
  • Multi-output with DC regulation on all outputs.
  • Continuously variable 0-20V (DC Regulated) output at a current rating of 1 Amp.
  • Internal fan for cool-running.
  • Digital LED display for variable DC voltage.
  • Split bobbin transformer design with additional inbuilt thermal protection.
  • Slow-blow fuse protection.
  • Additionally ± 15V DC at 1Amp (max) is provided.
  • Another output of 5V, 1Amp DC is also provided.
  • 3 Resettable overload protection.
  • Ideal for general purpose applications in students’ laboratory particularly in the study of semiconductor devices and electronic circuits.

  • Reliable
  • Sturdy
  • Stackable
  • Portable
  • Excellent Aesthetics
Mains operations Universal & customized Option for both 115V/230V, 60/50Hz AC
Output[Multi-output] Voltage : Continuously variable regulated DC (0 - 20V). 5V DC (fixed)
-15, 0, +15 DC (fixed)
Current : 1A (max)
Safety Features ► Triple protection:
• Split bobbin transformer design with additional inbuilt thermal protection.
• Slow-blow fuse protection.
• Fully protected secondary by high speed, resettable electronic trip.
► Safety sockets for use with shrouded safety 4mm plugs but conventional leads with standard 4mm plugs can also be used.
► All Inspire power supplies are tested for CE safety requirements such as insulation resistance test, ground bond test, dielectric strength test etc.
Application Useful for general purpose laboratory and workshop use, particularly in situations where voltage sensitive components may be damaged by over voltage and experiments requiring fine power adjustments.
