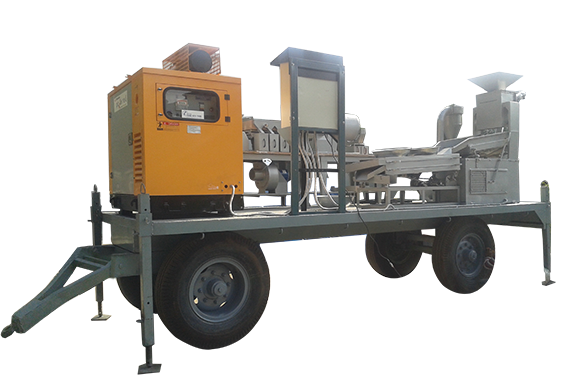

Mobile Seed Processing Equipment (Grader)

Item Code: 6828

COMPACT-aaaaaUNI-1



  • Useful for in situ cleaning & grading.
  • Cleaning & grading machines made in CNC for better finish.
  • Long travel length of screens of cleaner for better cleaning.
  • Environment friendly as cleaner provided with cyclone.

SEED FINE CLEANER

  • Capacity (Wheat basis) 1 Ton/hr
  • Top Screen (L x B) 700 x 595 mm, 1 No.
  • Middle Screen (L x B)700 x 595 mm, 3 No.
  • Bottom Screen (L x B)700 x 595 mm. 3 No.
  • Blower Motor 3HP
  • Sieve Boat Motor 1HP
  • Light Impurities Collection system By augers

GRAVITY SEPARATOR

  • Capacity (Wheat basis) 1 Ton/hr
  • 03 No. of Fans
  • Electric Drive 5 HP +1.5 HP
  • Deck Size 800 x 1580mm

UNIVERSAL MOISTURE METER

  • Stainless Steel Body
  • Test Cup Visible made of stainless steel round in shape.
  • Seven fluorescent numeric displays (FND) for digital display of Moisture reading.
  • Weight of Moisture Meter 18 Kg.

VERTICAL BUCKET ELEVATOR – 2 No.

  • Capacity 01 Ton/hr Wheat Basis

PLATFORM TYPE WEIGHING SCALE

  • Capacity 100 Kg.
  • Readability 10 gm.

HAND OPERATED STITCHING MACHINE

  • Type of stitch Single thread chain stitch
  • Weight 6 Kg
  • Power Requirement 0.1 HP, 8000 rpm 220V, 1.3 amps
Mobile Cleaning & Sorting Machine Manufacturers in India

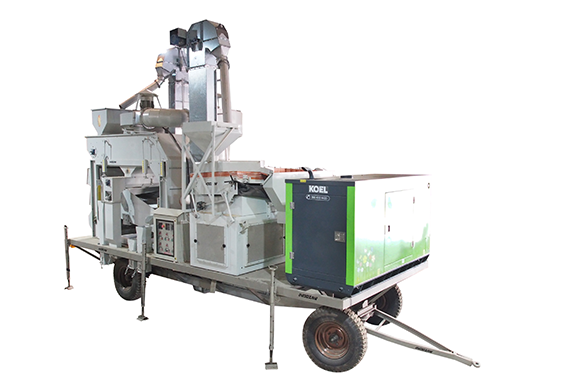

Mobile Seed Processing Plant (2TPH)

Item Code: 67003-F

COMPACT-aaaaaUNI-1



  • Useful for in situ cleaning & grading.
  • Cleaning & grading machines made in CNC for better finish.
  • Long travel length of screens of cleaner for better cleaning.
  • Environment friendly as cleaner provided with cyclone.
  • Genset provided so machines can be operated in absence of electricity.

SEED CLEANER CUM GRADER

Capacity : 2.0 Ton/Hr. (Based on wheat)
Total Screen Area : 4.0 M2

VERTICAL BUCKET ELEVATORS

Capacity : 3 TPH (Based on wheat)
Discharge height : Will be suitable to feed respective machines

SPECIFIC GRAVITY SEPARATOR

Capacity : 2 TPH (Based on wheat)

HEAVY DUTY PORTABLE BAG CLOSING MACHINE

Capacity : 100 Kg.
Platform Size : 450 x 450 mm.
Display : LED.

DIGITAL ELECTRONIC WEIGHING MACHINE-PLATFORM TYPE

Capacity : 300-350 Bags per Hour.

Electric Control Panel – 1 No.

DIESEL GENERATING SET 20KVA – 1 No.

MOBILE TROLLEY – 1 No.

mobile-seed-cleaner-cum-grader-cat-no-67002-em-02

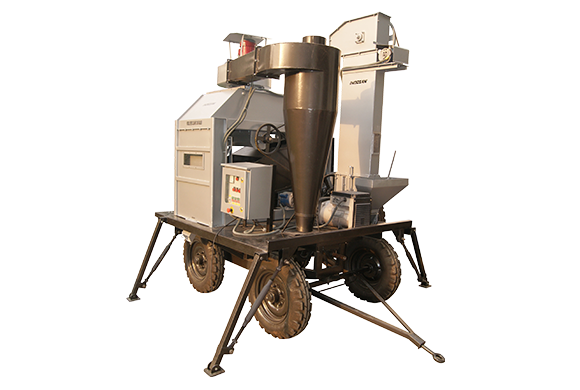

Mobile Seed Cleaner Cum Grader

Item Code: 67002-EM

COMPAsaaasCT-UNddI-1



  • Use ful for in situ cleaning & grading.
  • Cleaning & grading machines made in CNC for better finish.
  • Long travel length of screens of cleaner for better cleaning.
  • Environment friendly as cleaner provided with cyclone.

Cleaning Capacity : 700kg – 1Ton/Hr (on wheat basis) input At 12% moisture content Suitable for Wheat, Paddy, Barley Oil Seeds and vegetable seed.
Screen : Three screens.
Total Screen Area : 2meter sq.
Angle of Screen : Fixed
Sieve Boat Motor : 220V, 0.5HP Single/three Phase.
Blower Motor : 220V, 2 HP Single/three Phase.
Elevator motor : 220V, 0.5 HP Single/three Phase.
Operating Voltage : 220V, 50Hz Single/three Phase AC.
Hopper : Steel construction.
Aspiration Fan : Fan with variable air control arrangement to lift the light impurities, small weed seeds, husk and dust.
Cyclone dust collector : Makes operation environment friendly.
Elevator : Vertical elevator to feed seed cleaner.
Alternator : Alternator to provide 220V, single phase AC supply, P.T.O shaft driven in case of power failure.
Control Panel : A central electric control panel equipped with main on and off switch, volt meter, change over switch, ammeter, phase indicator, emergency switch, contrators with protective relays etc.
Trolley : All above shall be mounted on a trolley. Trolley fitted with heavy duty screw jacks pivoting front axle, one spare wheel, tool box and set of tools for ordinary repair and maintenance.
mobile-seed-grading-plant-02

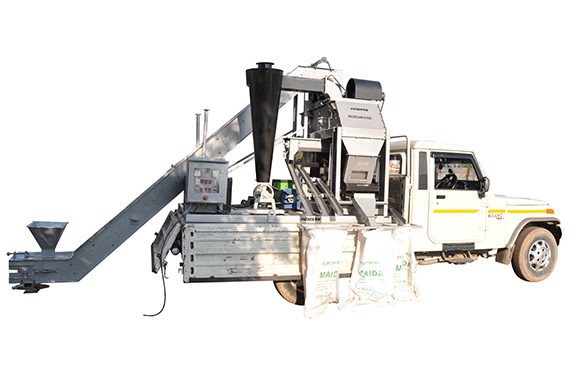

Mobile Seed Grading Plant




  • Use ful for in situ cleaning & grading.
  • Cleaning & grading machines made in CNC for better finish.
  • Long travel length of screens of cleaner for better cleaning.
  • Environment friendly as cleaner provided with cyclone.

  • Capacity 0.3Ton/Hr
  • Plant shall be able to operate on single phase 220 vl 50Hz electricity. An additional provision for taking drive from tractor PTO and operate an alternator shall be given (PTO shaft to be supplied additionally).
  • Cleaner cum grader assembly
  • Basically the assembly shall be equipped for soybean seed.
  • Capacity – At least 300 kg/hr on wheat basis at 12% moisture content.
  • Ability – shall be capable to grade commodities wheat, gram, paddy and soybean.
  • No. of screens – Each set having minimum 3 screens so that good grain, oversize impurities, under size impurities, scalped impurities. Immature impurities can be separated. Separated outlets shall be provided for each output. One additional set of screens will be provided with the machine.
  • Sieve cleaning facility – Balls shall be provided for automatic cleaning of sieve.
  • Cyclone dust collector with air trunk.
  • Aspiration fan – Shall have-variable air flow control.
  • Moisture meter -Compact Universal Digital Data Logging type, steel body construction, resistance-based, moisture range 3.5% to 40% with ±0.2% consistency. Shall have stainless steel test cup with visible arrangement
  • Electric control panel – Shall have sufficient meters to measure voltage, current. Proper fuses and safety devices shall be provided to safeguard the plant from voltage and ampere fluctuations.
  • Motors – 3 Nos. of motors are needed to run the entire plant. These motor shall be appropriate capacities. Total power requirement will be around 2-3 HP.
  • PICK UPVAN
  • Payload capacity (RTO ‘passing) Minimum 1 Ton
  • Cargo section-. having floor area (where plant will be mounted) of minimum 40 sq. feet with minimum dimension of 5 x 7 feet.
  • Engine CC – In the range, of 2000 to 3000 cc.
  • Ground clearness – Vehicle has to operate in village so there shall be minimum ground clearance of 150 mm.
  • The-pickup van shall have power steering for easy maneuverability.
  • Pickup van shall have good fuel efficiency mileage.
  • Pickup van shall have closed driver-cabin (front cabin)with seating capacity of atleast driver plus one.
