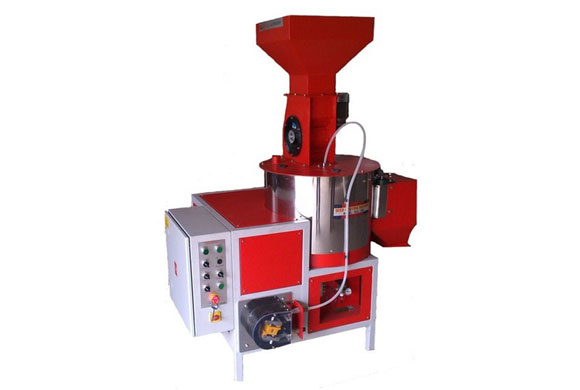

Mist-o-rnatic Seed Treater cum Seed Coating Machine with Rotostat technology complete with peristaltic pump and slurry tank of stainless-steel, energy efficient motor make Crompton/ Kirloskar/ Texmo/ SEW Euro Drive, variable speed power flex drive make Allen Bradely/ Mitsubishi/ Siemens /Crompton/ SEW EURO DRIVE in lieu of motor starter, Foundation Nut and bolts. Treater based on ROTOSTATT technology Capacity 2 TPH. and including the following..
Main Components:
Seed Measuring and Feeding Unit:
Hopper Capacity : 100 kg (depends on seed size and density)
Level is controlled by a "High accurate precision Sensor".
Machine housing with rubber or PU moulded Peddler is used for accurate feeding and to eliminate any possibility of seed damaged during feeding.
High precision Geared Motor for Peddler movement.
Main Disc and Shell :
Cast steel and machined disc.
Shell size :200 dia x 160 mm Height
Top surface of the disc has to be Rubberized/ (PU coating). Perfect angle matching between Main disc and base. To prevent seeds accumulation at this zone and damages to the seeds.
Less than 0.5 mm gap on radius of the base and disc.
Dual seal protection for bearing to prevent any chemical entering in to the bearing housing.
Motor for disc rotation peristaltic pump.
SS 304 Shell for long life.
Auto Dump gate
Equipped with Pneumatic cylinder for opening and closing of the gate- Upon completion
Treatment gate should open automatically to send the seed out of the machine.
Perfect matching with the shell with absolutely no gaps.
Peristaltic pump.
Designed for accurate dosing.
No leakages whatsoever. Extra chemical pipes to be provided as spare — 2 Nos. along with machine.
Designed in such way to avoid any back flow.
VFD drive and times to control the chemical dosage in terms of quantity and dosage time
Geared motordrive for pumping.
Control Panel
Separate automatic control panel
Programmable Logic Controller (PLC) with built timers to set the quantity of seed and Chemical.
Operator friendly timer setting- Operator can change the settings based on requirement.
Chemical Mixing Tank
Tank capacity : 50 Liters
SS Tank
Continuous slurry mixing arrangement.
Geared motor for mixer.
Power supply : 3 Phase, 415V, 50Hz
Connected Load : 1.5 to 3 HP
Air Supply : 5-6 Kgf
Starter & Switches : L&T/ Siemens
Load Cell : 01vIRON/SensotroniciArtech
FD Drives : Mitsubishi/ Siemens
sensors & Relays : Ornron
Contactors : Siemens
Pneumatics : Festo
Geared Motors: Bonfiglioli, Italy/ any other standard company Frame : Tubular construction - in house.
