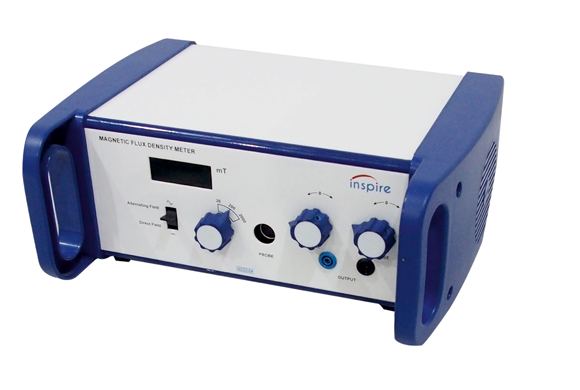

Magnetic Flux Density Meter

Item Code: SE1083A



  • Comes with both tangential & axial hall probe.
  • Suitable for measurement of both alternating and direct (AC/DC) magnetic field.
  • Coarse and fine knob for ZERO adjustment.
  • Universal main operation.
  • Suitable for measuring very high magnetic field (upto 2T).
  • Analog Output for connecting an external measuring device.

  • Reliable
  • Sturdy
  • Stackable
  • Portable
  • Excellent Aesthetics
Mains operations Universal & customized Option for both 115V/230V, 60/50Hz AC
Output Voltage 3 switchable measuring ranges:
Range Resolution
0-20mT 0.01mT
0-200mT 0.1mT
0-1999mT 1mT
Display : 3½ Digit LED
Safety Features ► Double protection:
• Split bobbin transformer design with additional inbuilt thermal protection.
• Slow-blow fuse protection.
► All Inspire Teslameter are tested for CE safety requirements such as insulation resistance test, ground bond test, dielectric strength test etc.
Application Suitable for measurement of both axial and tangential alternating/direct magnetic field.
