Mach-zender study

Item Code: SN1057

Working and Principle :

The Mach-Zender interferometer consists of two semi-reflecting plates (beamsplitters) and mirrors. A light beam is divided into two, after which both beams are recombined by eans of a semi-reflecting mirror. One of these beams will be named the Reference beam, while the other will allow us to take measurements on the vacuum index or plate thickness.




  • Modular approach.
  • Heavy stand provides high stability.
  • Having high quality optics.
  • Modern and user friendly design.
  • Precision optical instrument.

  • To measure the thickness of glass slide.
  • To study the Mach-Zender interferometer.
  • To study two-beam interferences.
  • Set of beam splitter/mirror λ/10, Ø50,8mm.
  • Optical table with 4 vibration absorbing feet.
  • Laser HeNe - 632,8 nm, 1 mW max.
  • High-quality professional gas laser.
  • Unpolarized.
  • Ray diameter : 0.5 mm.
  • Power supply to mains (12 V).
  • Achromatic lens, 10x.
  • Stands for taking diameter 10 mm rods.
  • Half-moon model, 210 mm high.
  • Screen (size: 25cm x 15cm) fitted on Ø 10 mm rod.
  • One side is white, the other side displays one graduated (mm)screen (size: 12cm x 12cm).
  • CCD camera.
  • The sensor is composed of 2048 pixels, 14 µm width.
  • Integration time adjustable from 5 ms to 100 ms.

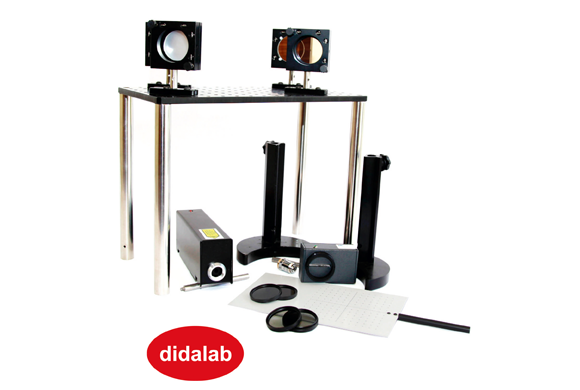

  • 1 Mach Zender interferometer
  • 1 He-Ne laser
  • 1 10x lens
  • 3 Half-moon stand
  • 1 Millimetric universal screen
  • 1 Lens holder
  • 1 Basic slide holder
  • 1 Superior Caliens camera
