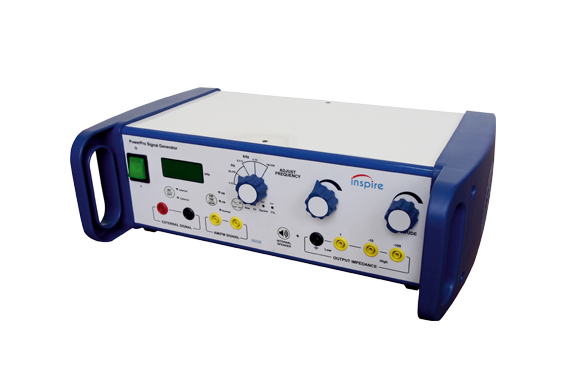

Inspire Power-Protm Signal Generator

Item Code: SE1082A



  • A Low Distortion Signal Generator with Four Decade Range Selectable by Rotary Switch.
  • Produces four different types of waveforms: Sine, Square, Triangular and TTL. Each of the waveform can be selected by tact Switch with LED Indicator.
  • Also having provision for AM and FM Modulation Input.
  • Drives directly vibration generators in study of wave phenomena.
  • Built – in Speaker may be activated for audible frequencies through tact switch.
  • Any external weak signal can also get amplified through the unit.
  • Overload protection through resettable switch.
  • Useful in various Physics and electronics experiments.

Mains operations Universal & customized Option for both 115V/230V, 60/50Hz AC
Output Voltage Range : 1Hz - 110kHz in four decade ranges.
Voltage : Continuously variable from 0 to 10V (VPP).
Waveform : Sine & square, triangular and TTL*.
Current rating: Directly drives the load less than 1Amp.
* for TTL logic level are from 0-5V (VPP).
Safety Features ► Triple protection:
• Split bobbin transformer design with additional inbuilt thermal protection.
• Slow-blow fuse protection.
• Resettable overload protection.
► Safety sockets for use with shrouded safety 4mm plugs but conventional leads with standard 4mm plugs can also be used.
► All Inspire Signal Generators are tested for CE safety requirements such as insulation resistance test, ground bond test, dielectric strength test etc.
Application Ideal for general purpose applications in students laboratory particularly in the study of wave phenomena.
