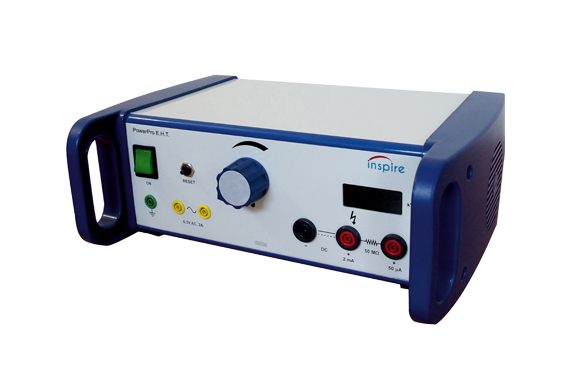

Inspire Power-Protm Prime E.H.T. Power Supply 0-6 kV

Item Code: SE1080A




  • Universal & customized 115V/230V mains operations.
  • Teacher lockable knob to limit the maximum voltage.
  • Split Bobbin Transformer Design with additional inbuilt thermal protection.
  • Slow-blow fuse protection.
  • Output voltage continuously variable from 0-6kV at a maximum current of 2 mA.
  • Another output with 50 MΩ safety resistor to limit the current to 50μA.
  • Additionally 6.3V AC at 2 Amp (max.) is provided for the filament supply.
  • An independent external ground terminal is provided which can be connected to any of the output terminals (positive & negative) to keep it at ground potential.
  • Digital LED display for DC output.
  • Internal fan for cool running.
  • Safety sockets for use with shrouded safety 4mm plugs but conventional leads with standard 4mm plugs can also be used.
  • Recommended for spectrum tubes and electrostatic experiments.

  • Reliable
  • Sturdy
  • Stackable
  • Portable
  • Excellent Aesthetics
Mains operations Universal & customized Option for both 115V/230V, 60/50Hz AC
Output D.C. Voltage : Continuously variable from 0 to 6 kV. (DC is unregulated.)
D.C. Current : 2mA(max) for 1st terminal.
50μA(max) for 2nd terminal.
A.C. Voltage : 6.3Volt (fixed)
A.C. Current : 2 Amps.
Safety Features ► Triple protection:
• Split bobbin transformer design with additional inbuilt thermal protection.
• Slow-blow fuse protection.
• Output current limit.
► Safety sockets for use with shrouded safety 4 mm plugs but conventional leads with standard 4 mm plugs can also be used.
► All Inspire power supplies are tested for CE safety requirements such as insulation resistance test, ground bond test, dielectric strength test etc.
Application Useful for electrostatic experiments and for driving vacuum devices and spectrum tubes and special experiments for e.g. Kerr Effect.
