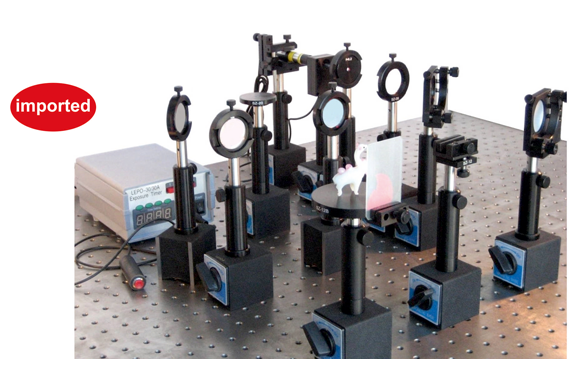

Holography experiment kit

Item Code: SN1091

Working and Principle :

This complete model includes conventional silver salt holographic plates with related accessories. Apart from these experiments this kit can be used to conducted more experiments in a darkroom with the aid of a tri-color safety lamp for transmissive and reflective hologram recording, including two- and three-dimensional hologram, one- and two-step rainbow hologram, image plane rainbow hologram, holographic reproduction, holographic device fabrication (transmissive or reflective holographic grating, and holographic lens), and holographic storage.
Note: a stainless steel optical table or breadboard (1200mmx600 mm x 600 mm) with optimal damping is needed for use with this kit




  • Different fundamental experiments
  • Detailed instruction manual
  • Easy alignment and setup
  • Magnetic base provide the high stability
  • High quality optics
  • Class laser sources

  • Fresnel holographic photography.
  • Image plane holography.
  • One-step rainbow holographic photography.
  • Two-step rainbow holographic photography.
  • Holographic grating fabrication.
  • Holographic lens fabrication.
  • High-density high-capacity holographic data storage.
  • Holographic interferometry.
  • Holographic reproduction.
  • He-Ne Laser : 35 mW @ 650 nm
  • Beam Splitter : 5 : 5
  • Flat Mirror : Φ 36 x 4 mm
  • Lens : f ‘ = 6.2, 15, 225 mm
  • Beam Expender : f ‘ = 4.5 mm
  • Object Screen : 150 x 60 mm
  • Common glass : 240 x 90 x 2 mm
  • Manual Counter : 4 digits, counts 0 ~ 9999
  • 1 Semi conductor laser
  • 1 Aperture Adjustable Bar Clamp
  • 2 Lens Holder
  • 6 Two-Axis Mirror Holder
  • 1 Plate Holder
  • 11 Magnetic Base with Post Holder
  • 2 Beam Expander
  • 2 Beam Splitter
  • 1 Continuous Ratio Beam Splitter
  • 3 Plane Mirror
  • 2 Lens
  • 2 Loading table
  • 1 Object Screen
  • 1 Small object
  • 1 Red, Yellow, Green LED lamp
  • 1 Illuminator
  • 1 Information card
  • 2 Holographic Plate
  • 1 Time exposer
  • 1 Single sided rotary slit
  • 7 500ml fine mouth bottle
  • 1 1000 ml Graduated cylinder
  • 1 Isopropanol (1500 ml)
  • 1 Distilling water (2000 ml)
  • 1 Glass knife
  • 1 30 cm Steel ruler
  • 1 1000W Hot blower
  • 1 D19 developer powder
  • 10 Common glass (240 x 90 x 2 mm)
  • 1 HY-914 Glue
