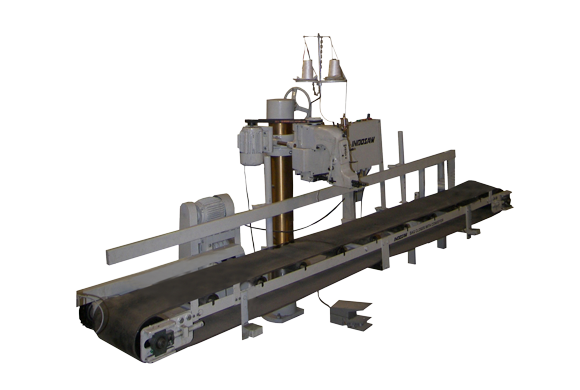

Heavy Duty Conveyorised Bag Closing Machine

Item Code: 6481

sfs-UNI-1



  • Heavy duty conveyor for continuous operation.
  • Speed reduction with the help of gear box.
  • Double action foot switch provided for operation of conveyor.
  • Mechanical trimming knife installed in the sewer head which cut the thread after a bag is stitched.
  • Mounting column capable of height adjustment of sewer head from 150 mm to 1350 mm for various size of bags.

Stitching Capacity : 600 + bags per hour
Electric Motor : 0.5 HP, 3 Phase-1440 rpm
Mechanical Trimming Knives : Installed in the sewer head which cut the thread after a bag is stitched.
MOUNTING COLUMN Material of Construction Movement : Rigid M.S. Seamless tubes. Up and Down movement is obtained with the help of lead screw and bevel gears.
Belt width : 300mm
Conveyor length :3000 mm
Carrying capacity : 600+bags per hour, which is synchronised with the speed of the Sewer Head.
Electric Motor : 1 HP, 3 Phase
Speed reduction : With help of Gear Box
