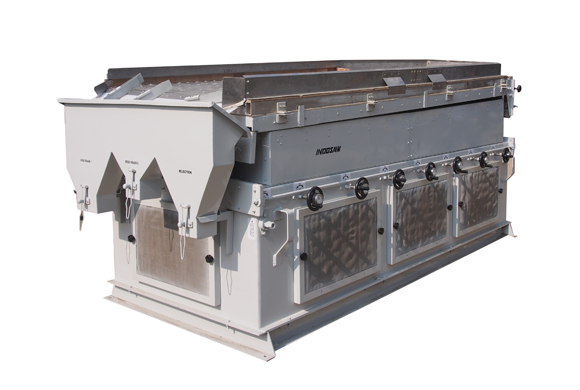

Gravity Separator

COMPjaanACT-UNI-1



  • Light weight wooden & steel deck.
  • CNC fabrication of all sheet metal components.
  • Easily interchangeable rectangular, deck for variety of crops and accuracy .
  • Adjustable inclination of deck laterally and longitudinally.
  • Five different types of output samples based on their density are collected through separate outlets.
  • Eccentric speed can be regulated, which is useful for different type of seeds.
  • VFD controlled for the suitable deck movement.

Model ISG-3 ISG-5 ISG-7
Capacity (Wheat basis) 1 Ton/hr 2 Ton/hr 4-5 Ton/hr
No. of Fans 03 05 07
Electric Drive 5 HP 10 HP 15 HP
Deck Size 760 x 1525mm 1065 x 2285mm 1200 x 3000mm
Fabrication CNC punching CNC punching CNC punching
Deck Inclination Adjustable Adjustable Adjustable
Deck Speed Adjustable Adjustable Adjustable
Deck Wire Stainless steel Stainless steel Stainless steel

ISG-3 = Indosaw Specific Gravity 3 Fan, ISG-5 = Indosaw Specific Gravity 5 Fan, ISG-7 = Indosaw Specific Gravity 7 Fan
