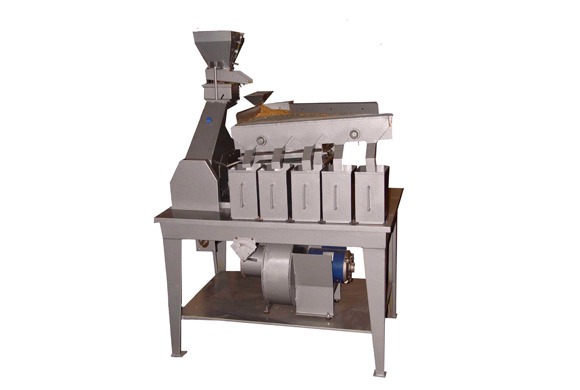

Gravity Separator

Item Code: 6838




  • CNC machining for fabrication of all sheet metal components.
  • Eccentric speed can be regulated, which is useful for different type of seeds using V.F.D.
  • Five different types of output samples based on their density are collected in separate containers.
  • Easly interchangeable deck, which helps in changing the deck with different types of sieves without consuming time.

Cleaning capacity : 100 kg/hr (based on wheat)
Construction : CNC processed component used for long life and better accuracy.
Dimension : 1100 x 700 x 1550 mm (L x W x H) approx.
Motor for blower : 1HP, 2810 RPM, single phase.
Motor for vibrating deck : 90W, 1440RPM, single phase.
Operating voltage : 220V, 50Hz, single phase AC.
Output : Five different types of sample can be collected according to their density.
Speed regulation : Eccentric speed can be regulated, which is useful for different type of seeds.
Vibration : Vibration resistant deck design.
Interchangeable deck : Easly interchangeable deck, which helps in changing the deck with different types of sieves without consuming time.
Suitable : Suitable for all types of seeds.
