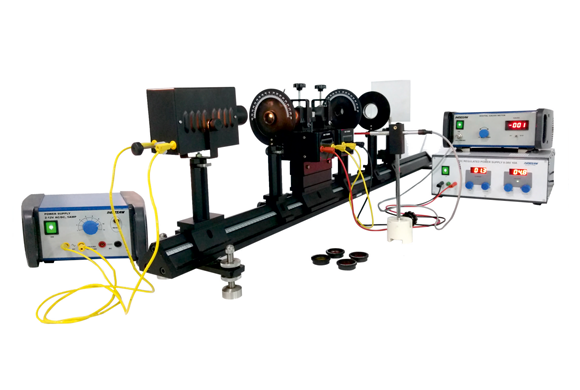

Faraday Effect with Halogen light

Item Code: SK063

Working and Principle :

If a transparent isotropic material is placed in a strong magnetic field and linearly polarized light is transmitted in the direction of the magnetic field, the plane of polarization of linearly polarized light rotates by an angle.
... In the present setup the optical activity of flint glass is investigated in a magnetic field. The angle of rotation of plane polarized light is proportional to the length (L) and magnetic field (B).
Ø=V.L.B
Where
Ø = Angle of rotation
V = Verdet’s constant
L = Length of flint glass
B = Magnetic field strength
The magnetic field strength is measured using Gauss meter with axial probe.




  • All electrical connections are made using 4mm safety plugs & sockets.
  • Compact & portable electromagnet.
  • High current DC power supply with safety features like short circuit protection, over heat protection etc.
  • Saddle can hold rod from 8 to 15mm.
  • Heavy, rigid and stable Triangular Optical bench (made of Al extrusion).
  • Height and level adjustment screws (made of SS)
  • Analyser/Polayser with 0 ± 90° graduation.

  • Observing the rotation of the polarization plane when polarized monochromatic light passes through flint glass under influence of a magnetic field.
  • Determining Verdet’s constant from the relation between rotation angle and magnetic flux.
  • Verification of the relationship between Verdet’s constant and wavelength.
  • Flint Glass : DEDF glass, size 15 x 15 x 15mm
  • DC Power supply : 0-30V DC, 10A, 3½ Display LED
  • Power supply : Output : 2,3,4,5,6,8,10 & 12V AC/DC, fullwave rectified, unregulated D.C
  • Digital Gauss meter : Range 2KG & 20 KG, Resolution 1G & 10G, Sensor InAs
  • Electromagnet coil : 500 Turns, 7Amp (Max.)
  • Electromagnet Core : Ferromagnetic, 40x40mm cross section,
  • Polarizer : Angle (0 ± 90°), LC 1°, Aperture 21mm, Frame 130mm, Rod 10mm
  • Halogen lamp : 12V, 35W, horizontal filament
  • Optical bench : Al exclusion, L=1 mtr., Triangular shape with end stop, 4 point levelling (SS screw)
  • Transversal slider : 25 – 0 – 25mm, LC 0.01mm
  • Fixed slider : Al Extrusion, Base width 50mm, Height 115mm
  • 1 Flint glass with Holder
  • 1 Electromagnet unit with slider
  • 1 Pair of Polariser / Analyser
  • 1 Object screen
  • 1 Optical bench, 1 meter
  • 4 Fixed slider
  • 1 Long width slider
  • 1 Power supply (0-30V DC,10A)
  • 1 Power supply (2-12V AC/DC)
  • 1 Digital gauss meter with probe
  • 1 Hall probe holder
  • 1 Convex lens (F = 10cm)
  • 2 Plug lead 100 cm, Black
  • 1 Plug lead 100 cm, Red
  • 1 Plug lead 50 cm, Yellow
  • 1 Halogen lamp
  • 1 Cylindrical base
  • 1 Set of filters
  • Polarization of light
  • Birefringent.
  • Kerr cell
  • Opto-electro effect
