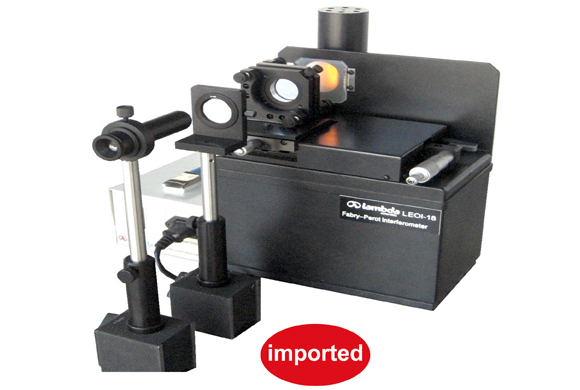

Fabry perot Interferometer

Item Code: SN1063

Working and Principle :

The Fabry-Perot interferometer is a standalone device that can be used to observe multiple-beam interference and measure the wavelength separation of Sodium D-lines. When equipped with other components, this device can be used to conduct other experiments such as to observe the spectral shift of a Mercury isotope or the splitting of spectral lines of atoms in a magnetic field (the Zeeman effect).




  • Including Sodium Lamp with Power Supply.
  • Smooth mirror movement.
  • Compact design and easy to use.
  • Microscope with Micrometers for observation.
  • Magnetic stand provides high stability.

  • To observe multiple beam Interference.
  • To measure wavelength separation of Sodium D-lines
  • Flatness of Reflective Mirrors : 0.1l
  • Diameter of Reflective Mirrors : 30 mm
  • Reflectance of Mirrors : 95%
  • Effective Travel of Preset Micrometer : ~ 3 mm
  • Min Division Value of Preset Micrometer : 0.01 mm
  • Travel of Fine Adjustment of Movable Mirror : 1.25 mm
  • Resolution of Fine Adjustment : 0.0005 mm
  • Low-Pressure Sodium Lamp : 20 W
  • 1 Fabry-Perot Interferometer
  • 1 Observation Lens (f = 45 mm)
  • 1 Lens Holder with Post
  • 1 Mini Microscope
  • 1 Microscope Holder with Post
  • 2 Magnetic Base with Post Holder
  • 2 Ground Glass Screen
  • 1 Pin-Hole Plate
  • 1 Low-Pressure Sodium Lamp with Power Supply
  • 1 User’s Manual
  • Interference.
  • Wave length.
  • Coherent sources.
  • Febry Perot
