Caliens Camera

Item Code: SN1064

Working and Principle :

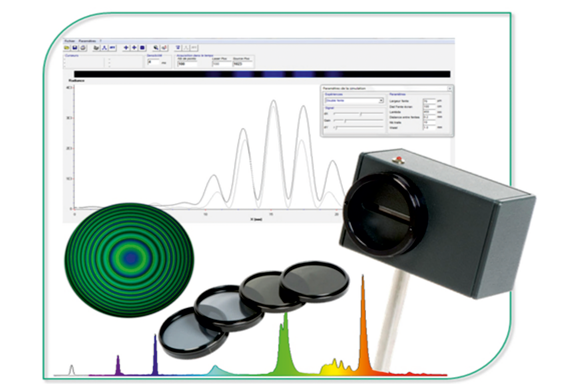

The CCD camera is constituted of one optical sensor directly interfaced with a PC computer through USB port. It is possible to sample and operate luminous pictures with the help of complete & easy-to-use software program.




  • No external power supply needed.
  • Standalone unit.
  • USB operated.
  • Numerous supporting accessories.
  • High quality optics.
  • Intuitive software.
  • Supplied in a briefcase.

  • The Study of diffraction and interferences pettern.
  • The Sampling of light images – Complete software, user friendly.
  • The Analysis of analogical/digital signals, function of the resolution of the converter.
  • The Modelling of theocratical curves.
  • The Time acquisition of the interferograms of the Michelson interferometer.
  • The Initiation to spectrometry with Fourier transform.
  • Sensor : 2048 pixels (14-μm wide)
  • Sensitive zone : approx. 30 mm.
  • Adjustable integration time Time acquisition Fourier’s transform Spectrometric calibration: 2 ms to 5 s
  • 1 CCD camera
  • 1 Complete software, operating with Windows
  • 1 USB cable
  • 1 Ø 10-mm rod
  • 1 Shading filter, density 3
  • 1 Set of 4 filters(2 polarizers, 2 0.9-density)
  • 1 Carrying case
  • 1 Complete documentation
