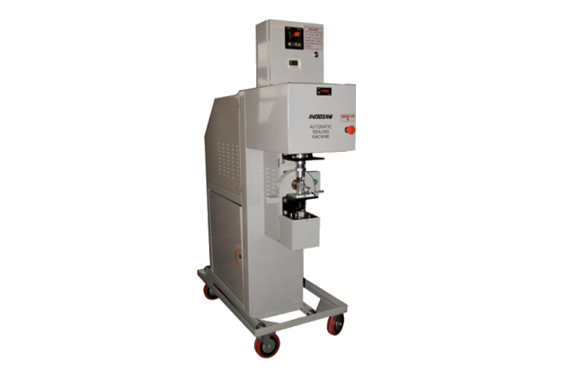

Automatic Sealing/Stamping Machine

Item Code: S-0010

fhfgh-UNI-1



  • Reliable seal, saves time and labour.
  • Energy saving variable displacement geared motor for extruder.
  • Nozzle pin provided to prevent dryness of material in injection.

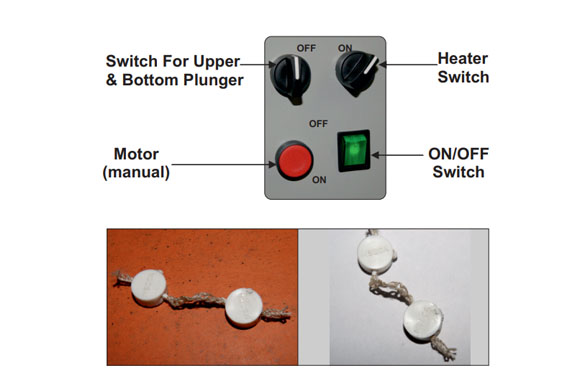

  • Manual buttons provided to operate manually.
  • PLC & control panel in dust proof BCH cabinet.
  • Emergency stop button.
  • Geared type motor enables high torque and excellent performance.
  • The Electronics circuits fully protected and unaffected by dusty environment
  • Digital Display of Temperature & control.
  • Machine can move left & right to adjust as per bag width.
  • Mounted on wheels for easy mobility

Control : PLC
Process : Mould closing-material injection-cooling-seal ejection
Threaded seal size : Dia 14mm,thick 5mm
Provision of Mark :On both sides of plastic seal
Temp. controller :Digital to set plastic material temperature.
Portability : Mounted on four wheels
Capacity :180-200 bags/hour & more
Overall dimension : 1333 x 610 x 1755mm (W x L x H) (approx ).
Gross weight : 260 kg
Electrical drive : 0.7KW. 440 v 50 Hz, AC
Power consumption :2.3KW
Plastic Seal : PP
Monogram : Monogram of department
Power Supply : 440V Three Phase
