Item Code: 6001
Commodity | : Food Grains, Pulses, Oil Seeds, & Vegetables Seeds etc. |
Range | : 3.5 to 40% |
Consistency | : ± 0.2 % |
Principle of measurement | : Resistance |
Temperature Compensation | : Automatic with PT-100 temperature sensor. |
Range selection | : Automatic |
Low Bat indication | : Automatic |
Error conditions | : Displayed. |
Power | : 9 V DC, operated through 230V, 50Hz, AC main or 6 dry cells |
Size (LxBxH in cm) | : 30x18x19 (approx). |
Weight | : 9.5Kg (approx) |
Item Code: 2000
Commodity | : Food Grains, Pulses, Oil Seeds, & Vegetables Seeds etc. |
Range | : 3.5 to 40% |
Consistency | : ± 0.2 % |
Principle of measurement | : Resistance |
Temperature Compensation | : Automatic with PT-100 temperature sensor. |
Error Conditions | : Under range, over range, Low Battery Indication etc. . |
Display | : Digital, 3 digit LED. |
Attachments | : RS 232 Port provided for Printer/Computer. |
Auto Calibration | : Automatic using simple key operation (Without opening the equipment or using a screwdriver). When reading in a moisture meter gets disturbed with a passage of time there is a provision of checking this and correcting this to the factory settings. |
Thumb wheel | : Four thumb wheel for commodity Selection & auto calibration. |
Power | : 9 V DC Adaptor, operated through 230V, 50 Hz, AC main or 6 dry cells |
Size (LxBxH in cm) | : 30x18x19 cm (approx) |
Weight | : 9.5Kg (approx). |

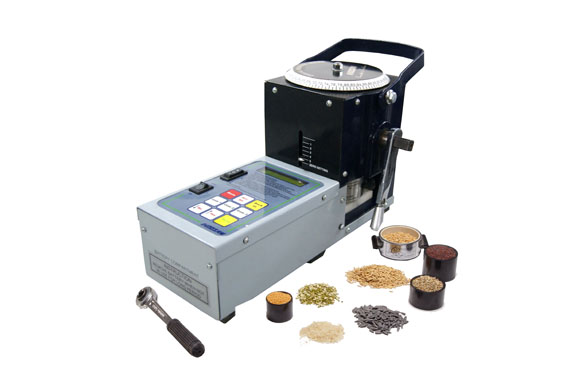

Item Code: 2004
Commodity calibration | : Food Grains, Pulses, Oil Seeds, & Vegetables Seeds etc. |
Range | : 3.5 to 40% |
Consistency | : ± 0.2 % |
Principle of measurement | : Resistance |
Temperature Compensation | : Automatic with PT-100 temperature sensor. |
Error Conditions | : Under Range, Over Range etc. |
Display | : 2 x16 character alphanumeric LCD display. |
Low Battery Indication | : Displayed on LCD display, No display of Moisture percentage in case of low battery. |
RS 232 Port | : It has the provision to attach printer to print Moisture %age, Temperature, Commodity name, date and Time through printer. Recorded data can be transferred to PC through RS 232 port. |
Hot keys | : Hot Keys for three crops which are programmable |
Keypad | : Membrane type keypad (9 keys). |
Averaging | : Customer can have averaging of number of readings of moisture Percentage through a key. |
Recall Facility | : Last reading Recall facility. |
Data Logging | : It has facility to record data, which includes Moisture percentage, Temp. Commodity Name, Commodity Code along with Date & Time. |
Data storage capacity | : It has memory of 200 readings. |
Power | : 9 V DC Adaptor, operated through 230V, 50 Hz, AC main or 6 dry cells. |
Size (LxBxH in cm) | : 30x18x19 cm (Approx.) |
Weight | : 9.5 Kg (Approx.) |
Item Code: 2004-BH
Commodity calibration | : Food Grains, Pulses, Oil Seeds, & Vegetables Seeds etc. |
Range | : 3.5 to 40% |
Consistency | : ± 0.2 % |
Principle of measurement | : Resistance |
Temperature Compensation | : Automatic with PT-100 temperature sensor. |
Error Conditions | : Under Range, Over Range etc. |
Display | : 2 x16 character alphanumeric LCD display. |
Low Battery Indication | : Displayed on LCD display, No display of Moisture percentage in case of low battery. |
RS 232 Port | : It has the provision to attach printer to print Moisture %age, Temperature, Commodity name, date and Time through printer. Recorded data can be transferred to PC through RS 232 port. |
Hot keys | : Hot Keys for three crops which are programmable |
Keypad | : Membrane type keypad (9 keys). |
Averaging | : Customer can have averaging of number of readings of moisture Percentage through a key. |
Recall Facility | : Last reading Recall facility. |
Data Logging | : It has facility to record data, which includes Moisture percentage, Temp. Commodity Name, Commodity Code along with Date & Time. |
Data storage capacity | : It has memory of 200 readings. |
Power | : 9 V DC Adaptor, operated through 230V, 50 Hz, AC main or 6 dry cells. |
Size (LxBxH in cm) | : 30x18x19 cm (Approx.) |
Weight | : 9.5 Kg (Approx.) |
